HKV151B (BI) Fancy Yarn Twisting Machine

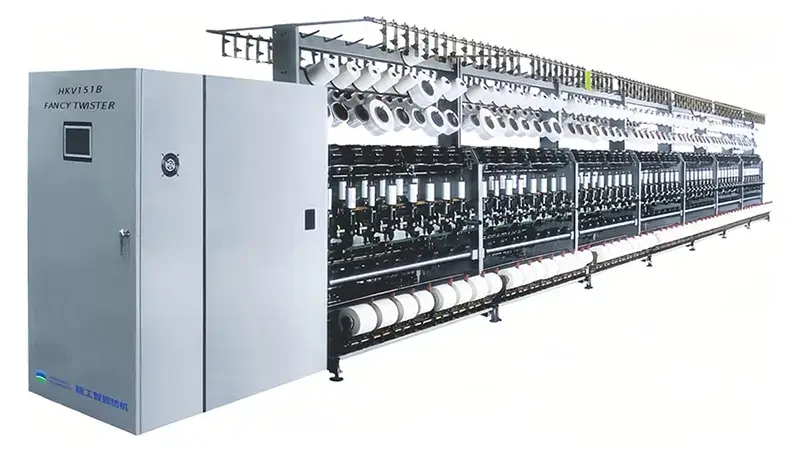

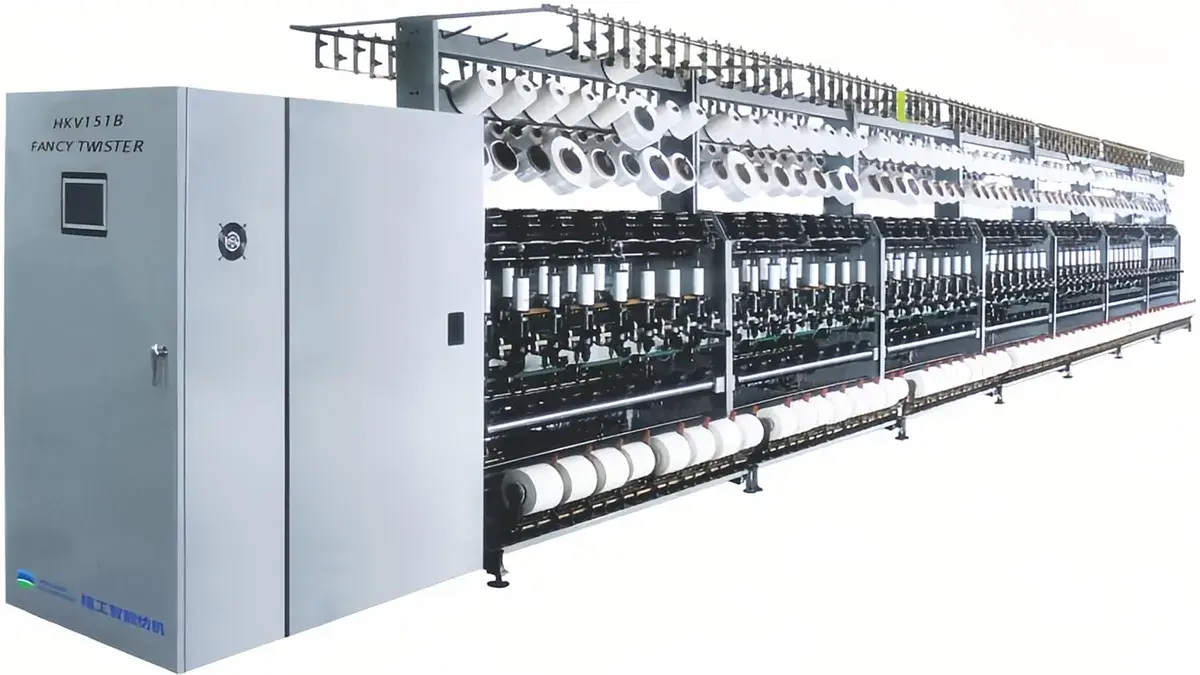

Fancy Yarn Twisting Machine, HKV151B (BI)

Developed for producing a wide range of decorative yarn structures, the yarn twisting machine uses controlled twisting and overfeed processes. It can produce different types of fancy yarn such as knot yarn, wave yarn, loop yarn, and slub yarn.

HKV151B supports various raw materials including cotton, wool, linen, and synthetic fibers. It adopts a PLC control system that simplifies operation and allows operators to switch between different fancy yarn processes with minimal adjustment. A quick knotting device and a lower false-twist spindle are also included to support flexible yarn formation during production.

The winding system forms yarn packages in a single step, helping maintain efficient production. Fancy yarn produced by HKV151B is commonly used in woven and knitted textiles where decorative yarn textures are required.

Applications

HKV151B is used for producing overfeed-type and controlled-type fancy yarns, including knot yarn, wave yarn, loop yarn, and slub yarn. These yarns are commonly used in woven and knitted textile applications where decorative yarn textures are required.

Applications
Applications
Applications
Specifications
Machine Layout Double-sided, single-layer
Number of Spindles 112
Spindle Pitch (mm) 210mm
Spindle Speed 7000-12000r/min
Twist Range 300-1600T/M
Take-up Speed < 27m/min
Yarn Count Range Nm 3 to Nm 40
False Twister Speed 4600-23000r/min
Installed Power 15.25kW
Control Mode PLC
Take-up Method Grooved drum
Product Size Ø200×152mm
Dimensions (L×W×H) 14210×1360×2150mm
