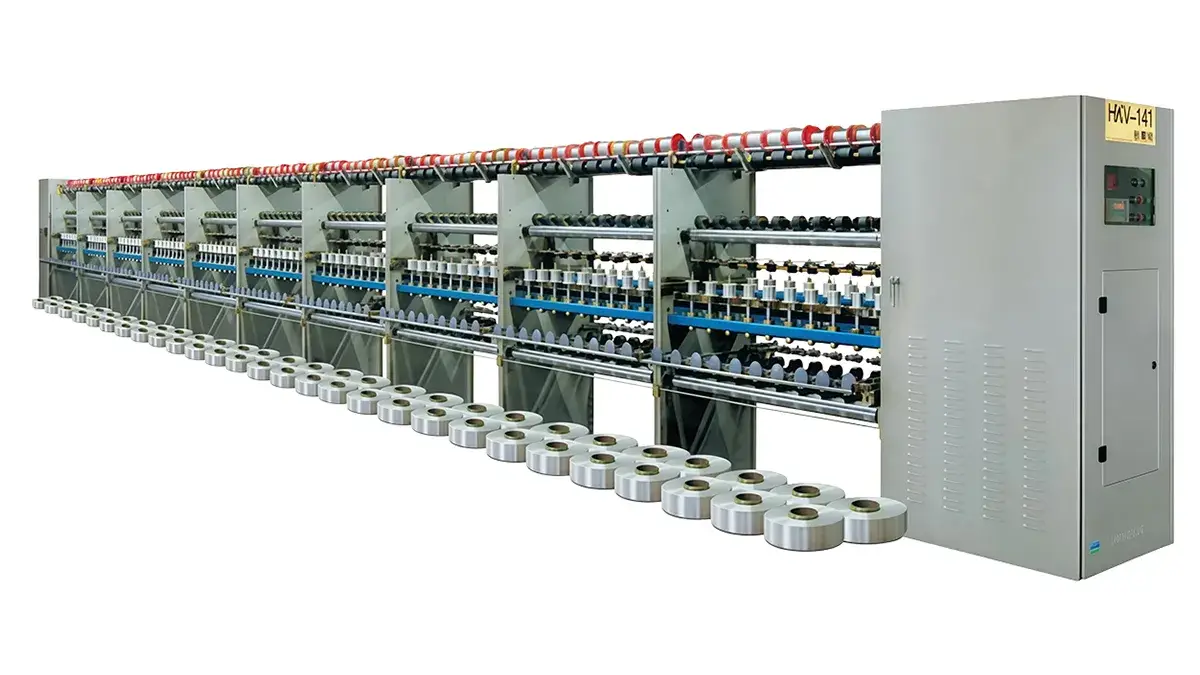

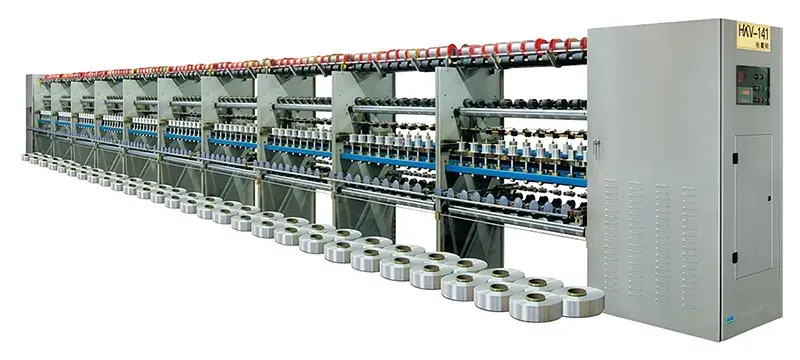

HKV141J Metallic Yarn Covering Machine (ST/MS Type)

Metallic Yarn Covering Machine (ST/MS Type), HKV141J

HKV141J is designed for producing ST and MS type metallic covered yarn. In this process, rayon or polyester filament is used as the core yarn, while metallic flat yarn such as ST or MS metallic film is wrapped around the core to form decorative metallic yarn.

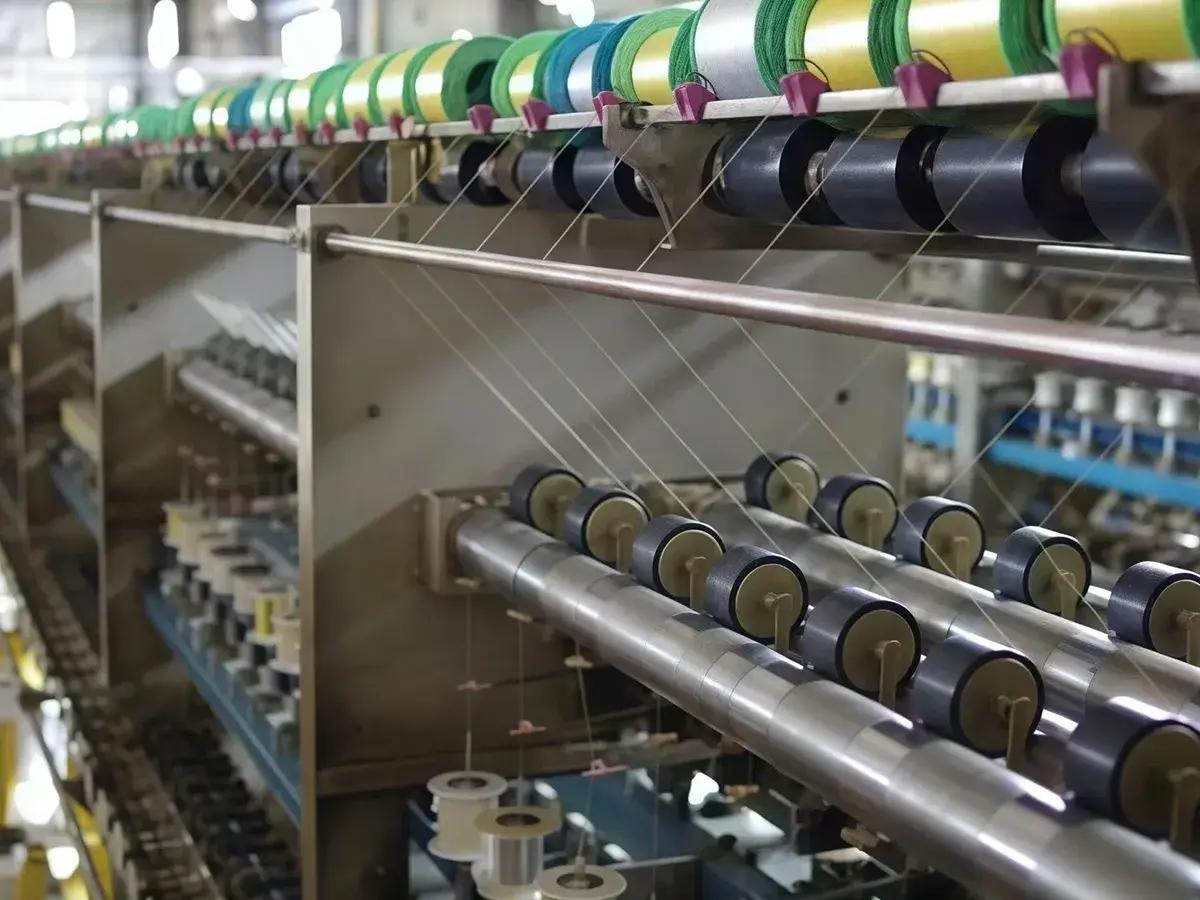

Its dedicated metallic yarn unwinding device keeps the metallic film flat during processing, preventing deformation and ensuring stable yarn quality. Consistent yarn speed and uniform twist during production is maintained by the drafting rollers that uses a manual pressure structure with a pressure roller weight of 750g.

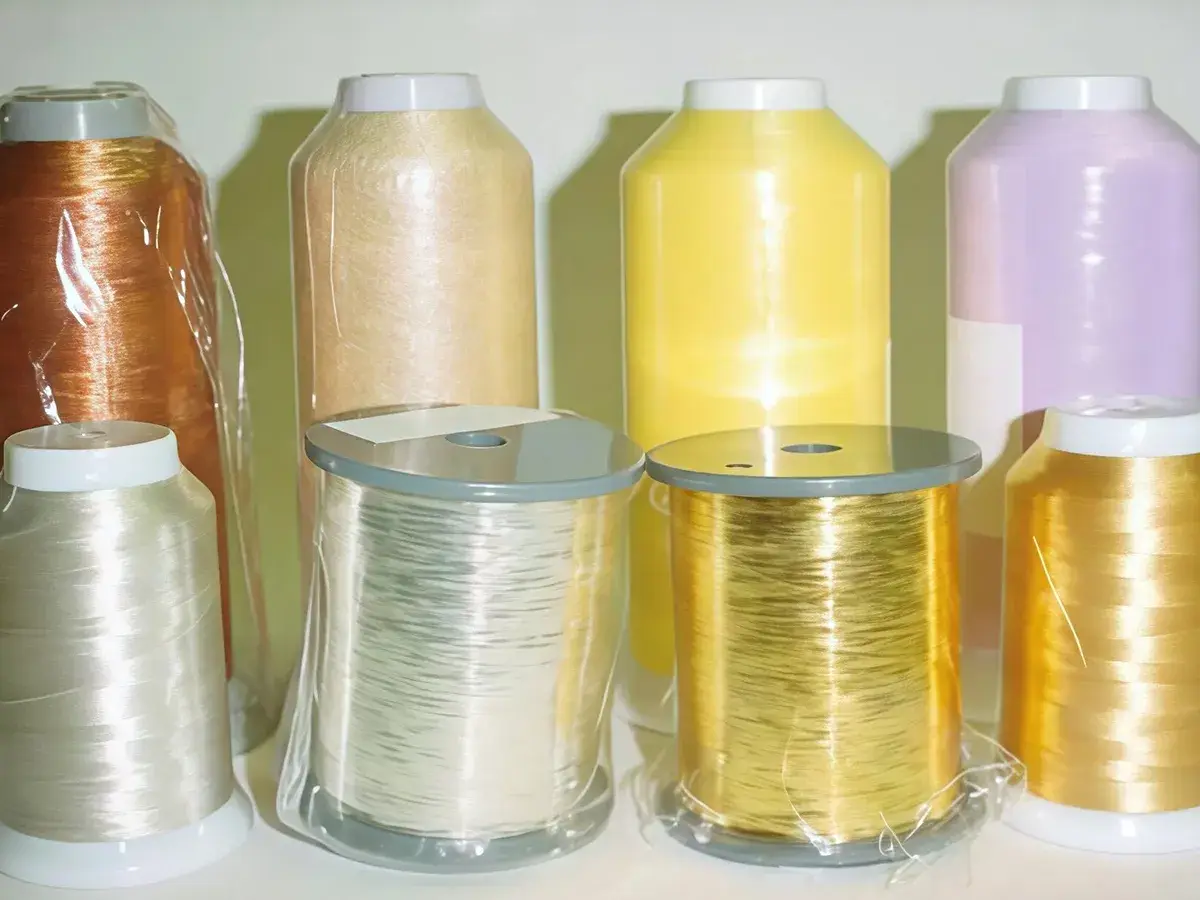

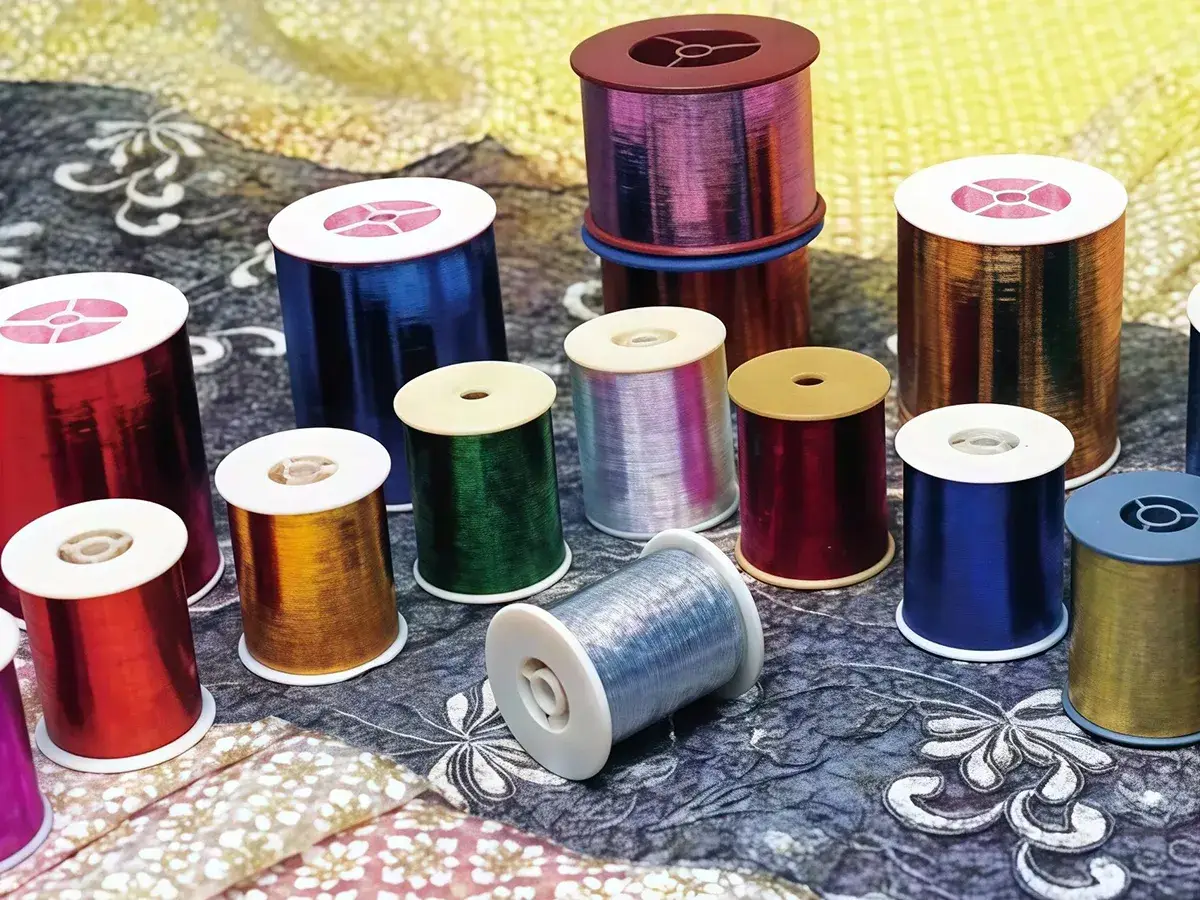

Metallic covered yarn produced by HKV141J is widely used in embroidery yarn, textile weaving, and decorative garment materials.

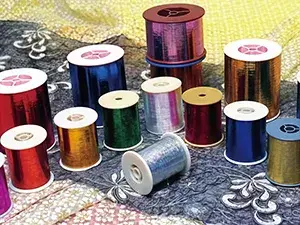

Applications

HKV141J is used for producing ST and MS type metallic covered yarn, with rayon or polyester filament as the core yarn and metallic flat yarn wrapped around the outside during processing.

Applications
Applications
Applications
Specifications
Machine Layout Double-sided, double-layer
Number of Spindles 120 160 200
Power 7.5kW 7.5kW 7.5kW
Dimensions 11540×1000×1710mm 14800×1000×1710mm 18060×1000×1710mm
Number of Sections 6 8 10
Spindle Pitch 150
Twist Range 300-3000
Spindle Speed 7000-12000r/min
Spindle Speed Adjustment Belt pulley change (or inverter control)
Take-up Bobbin Size 100ר120ר80mm
Take-up Bobbin Capacity ≤0.5kg
Cover Yarn Bobbin Size 57ר79ר41.5 (conical type, taper 47:100)
Twist Direction S/Z
Yarn Count Range 20-450 denier
