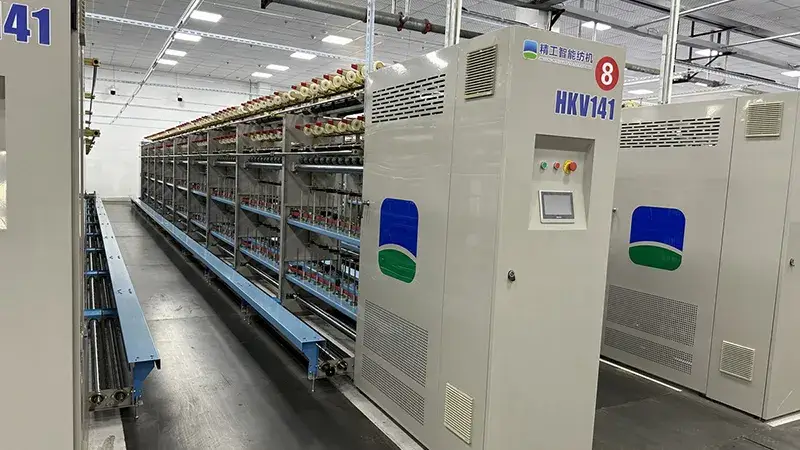

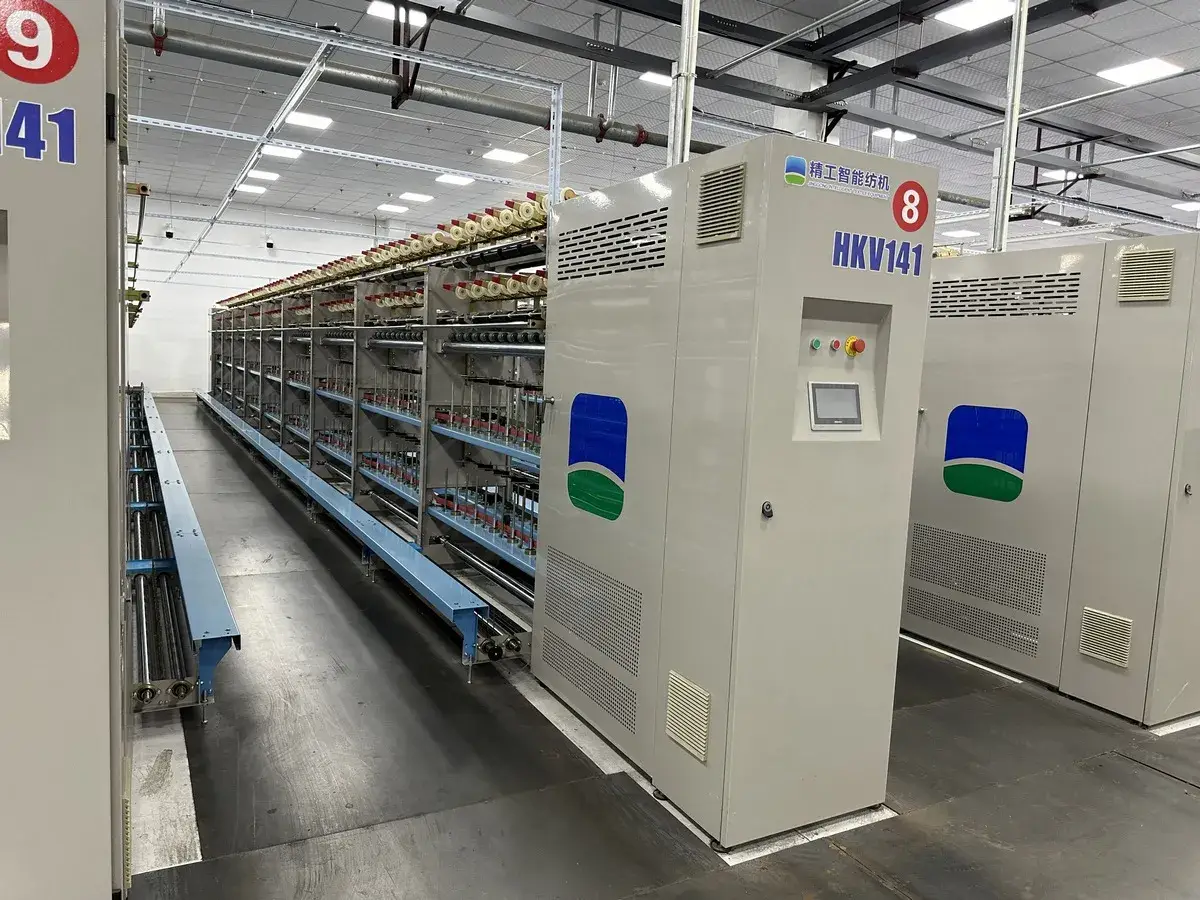

HKV141D Spandex Covering Machine Single/Double Covering
Spandex covered yarn production using polyester or nylon filament in the 70D–600D range can be carried out on HKV141D. The spandex covering machine supports both single and double covering processes. It allows manufacturers to produce covered yarn suitable for a variety of elastic textile applications.
The spandex covered yarn machine features a sturdy and newly designed structure that is easy to install and maintain while keeping energy consumption low during operation. It provides stable production conditions for thicker denier covering yarns, helping maintain consistent yarn formation and reliable yarn quality.
Covered yarn produced by HKV141D is widely used in textile products such as socks, wool sweaters, knitted fabrics, and various elastic garment materials.
HKV141D is designed for producing covered yarn using polyester or nylon filament in the 70D–600D range as the covering material. The yarn covering machine supports the production of thicker denier covered yarn commonly used in socks, wool sweaters, knitted fabrics, and elastic garment materials.
| Number of Spindles | 234 (single covering) | 216 (single covering) |
| 117 (double covering) | 108 (double covering) | |
| Spindles per Section | 26 | 24 |
| Take-up Length | 200mm | 220mm |
| Spindle Speed | 7000-14000r/min (Type I) 7000-17500r/min (Type Ⅱ) |
|
| Twist Range | 300-2200T/M | |
| Twist Direction | S/Z | |
| Spandex Draft Ratio | 1.6-4.0 | |
| Power | 18kW | |
| Dimensions | 18630×1500×2100mm | |
-

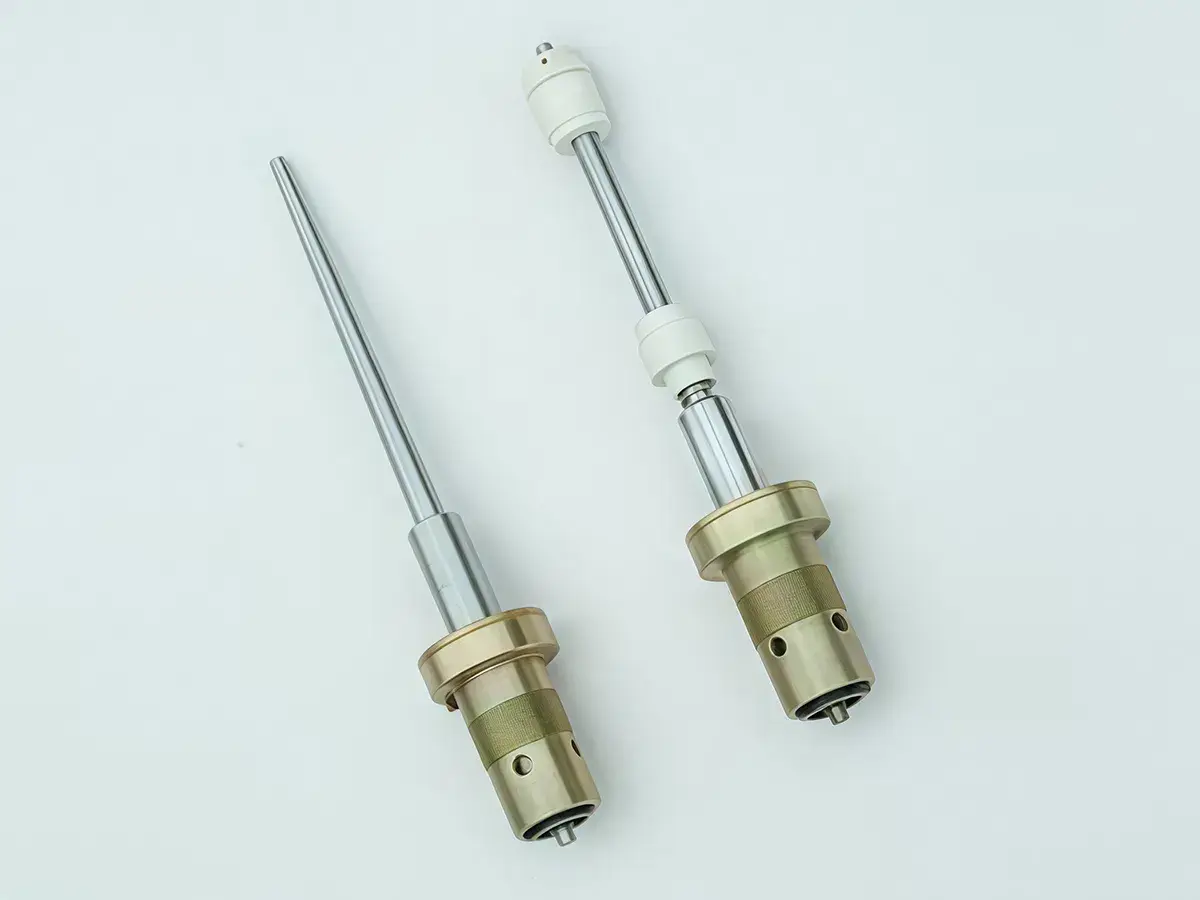

Multi-Specification SpindlesIt can be equipped with spindles in different specifications to match various covering yarn sizes. This flexibility allows the spandex covering machine to process a wide range of filament yarns and produce different types of covered yarn. The spindle design also makes installation and replacement quick and convenient.
-

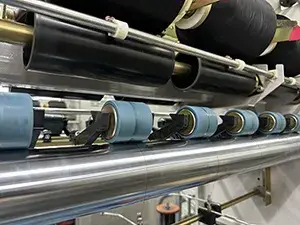

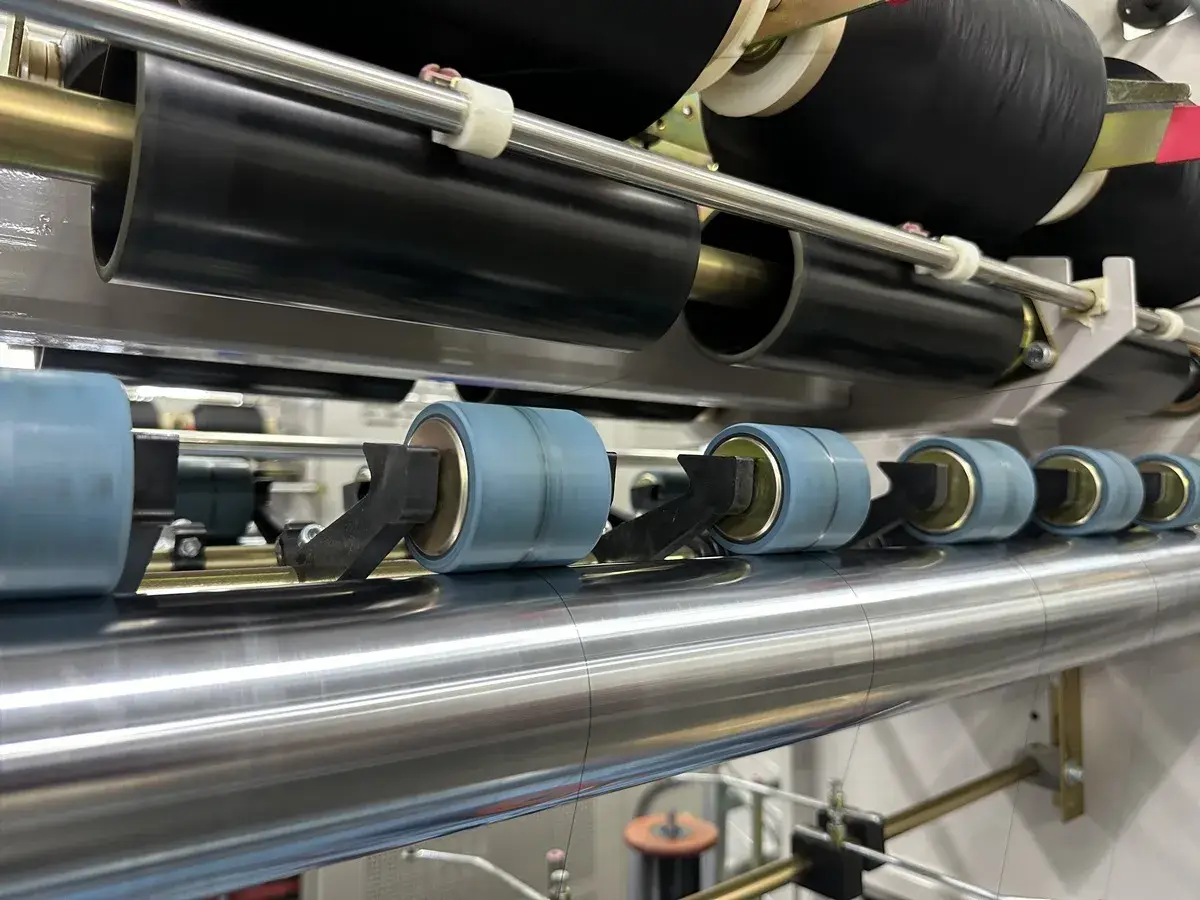

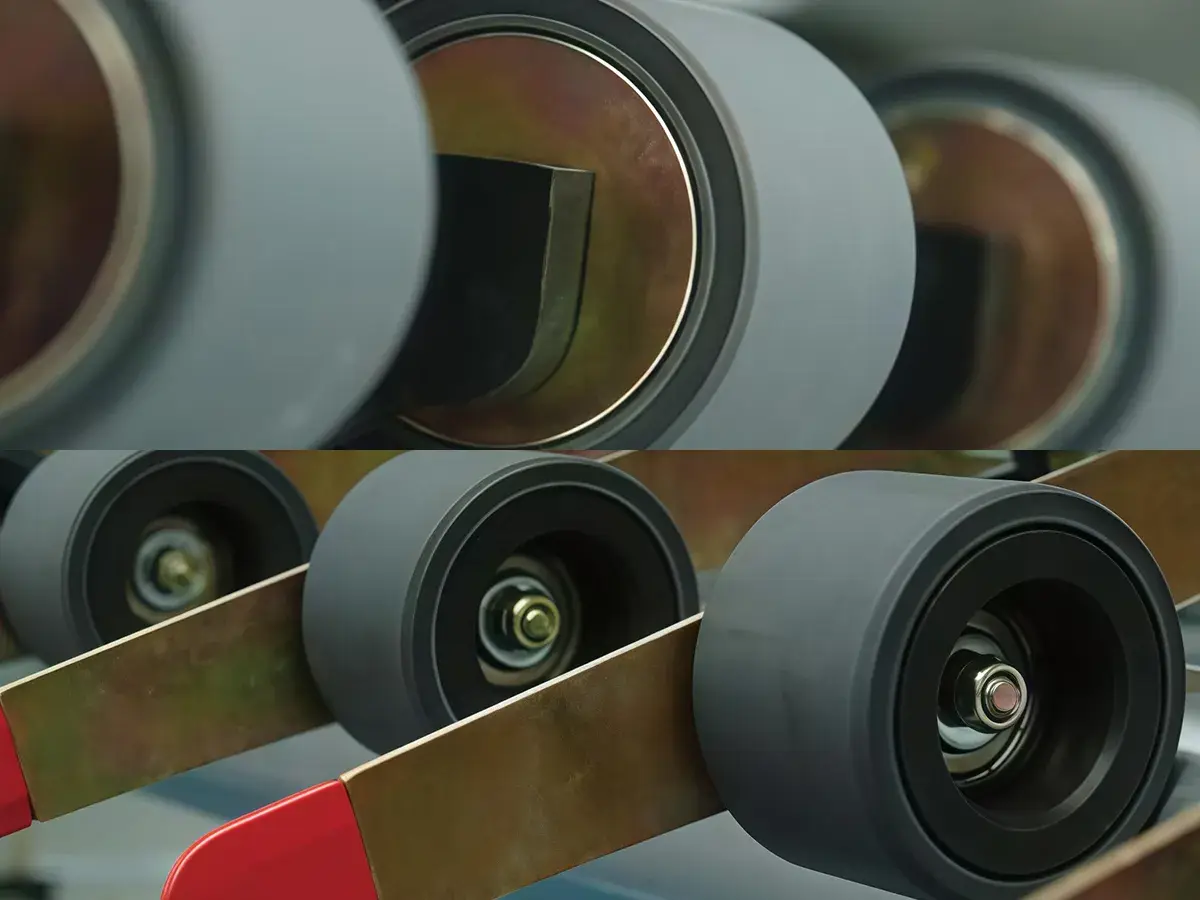

Pressure Roller OptionsDifferent pressure roller structures can be selected according to production requirements. Manual-type or swing-arm pressure rollers are available, allowing the yarn covering machine to adapt to different yarn specifications and processing conditions.
-
Electronic Forming System
Equipped with an electronic forming system that supports faster winding formation, it improves yarn package quality and allows smoother unwinding during downstream textile processing.
-
Safety and Monitoring System
Advanced digital control instruments together with high-quality electrical components monitor operating conditions in real time. Motor overheating protection and dual motor safety protection help maintain stable and safe machine operation.
