HKV141E Elastic Yarn Covering Machine Single/Double Covering

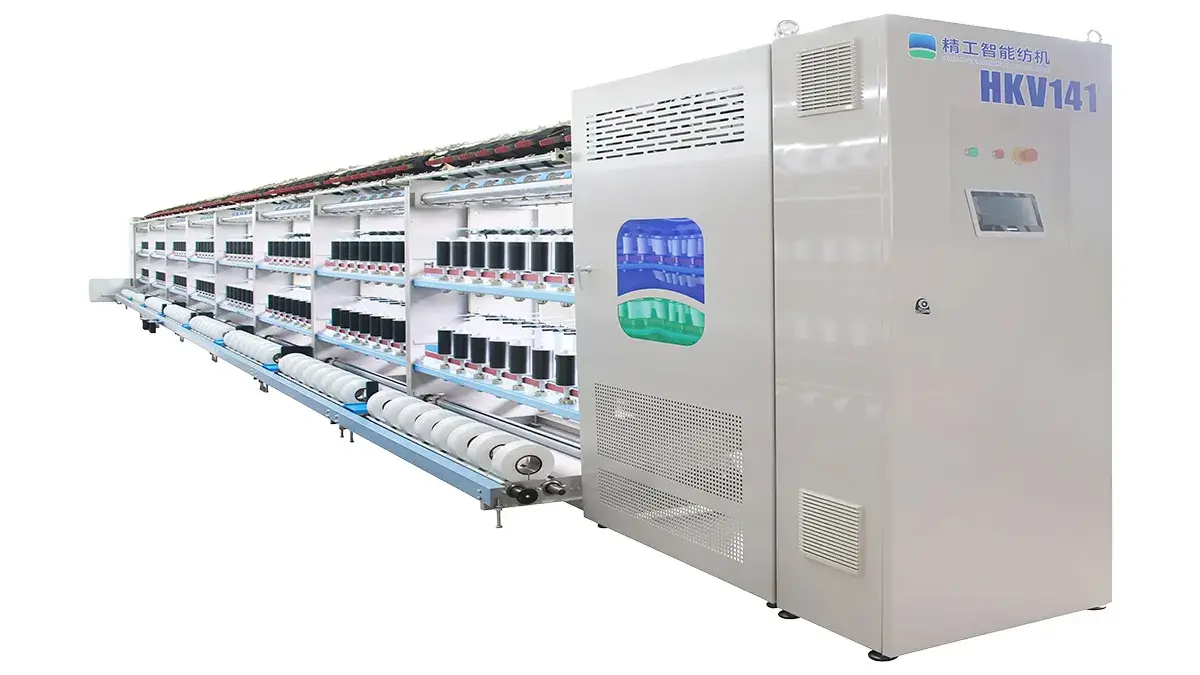

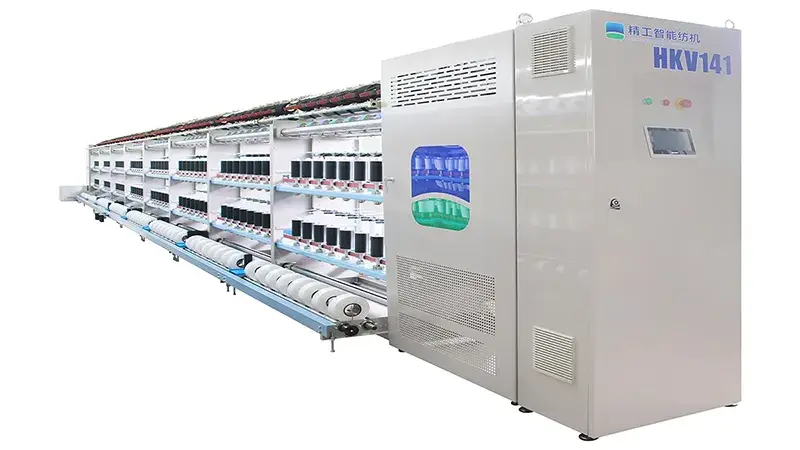

Elastic Yarn Covering Machine, HKV141E

Single/Double Covering with spandex core yarn and polyester or nylon filament covering yarn can be performed on HKV141E. Typical configurations include spandex core yarns in the 20D–140D range with polyester or nylon covering yarns in the 75D–300D range. The yarn covering machine is able to produce stable spandex covered yarn for elastic textile applications.

The yarn covering machine adopts a single-layer welded frame structure with a lower operating position, making it easier to operate and maintain. It features a compact and stable structure that allows quick installation while keeping energy consumption low during operation. Spandex covered yarn is widely used in textile products such as garments, woven tapes, sports socks, and elastic fabric materials.

Applications

HKV141E is used for double covering production with spandex core yarn in the 20D–140D range and polyester or nylon filament in the 75D–300D range as the covering yarn.

Applications
Applications
Applications
Applications
Specifications
Number of Spindles 128 (double covering)
Spindles per Section 32
Spindle Pitch 200mm
Spindle Speed 7000-14000r/min (Type I) 12000-17000r/min (Type Ⅱ)
Twist Range 400-3000T/M
Take-up Bobbin Size 160ר48mm
Control System Full servo control system
Spandex Draft Ratio 1.6-4.5
Power 13kW
Dimensions 16800×1500×1815mm

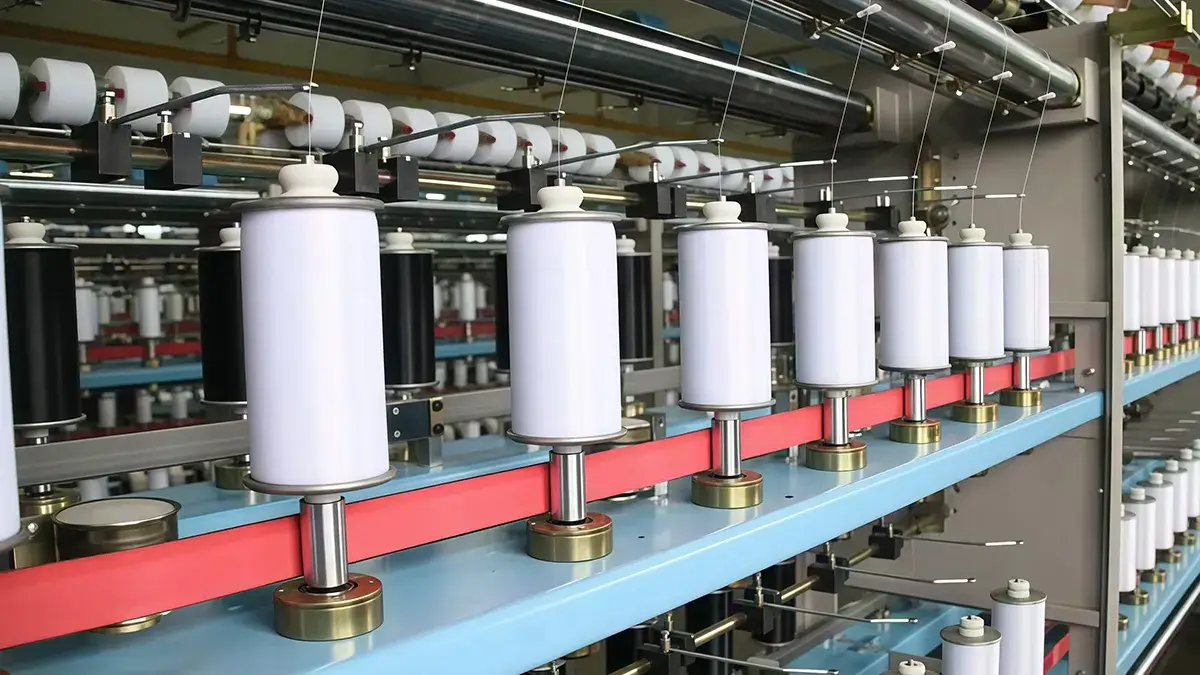

Detail Display
Detail Display
Detail Display

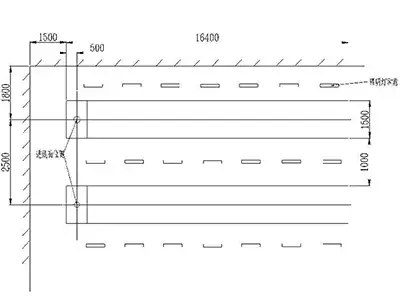

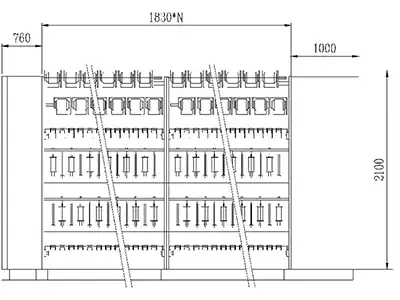

Detail DisplayInstallation Layout

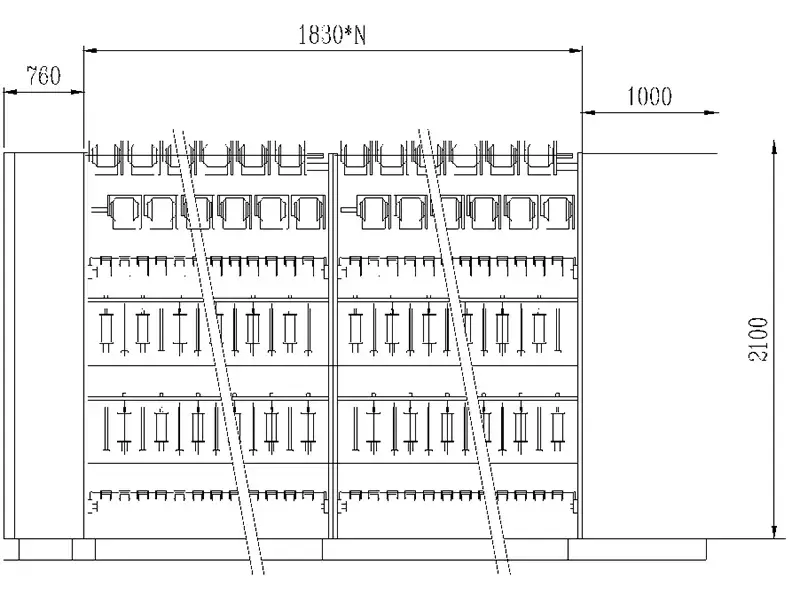

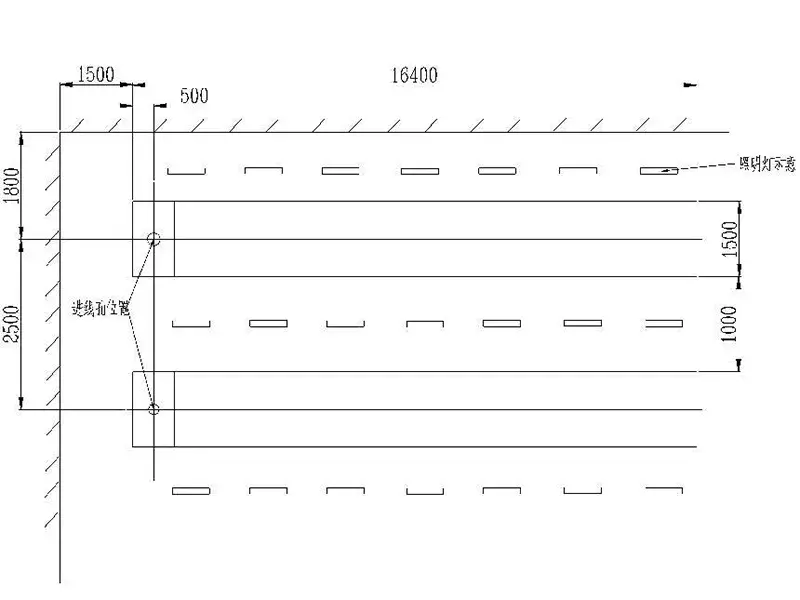

Detail DisplayFoundation Layout
