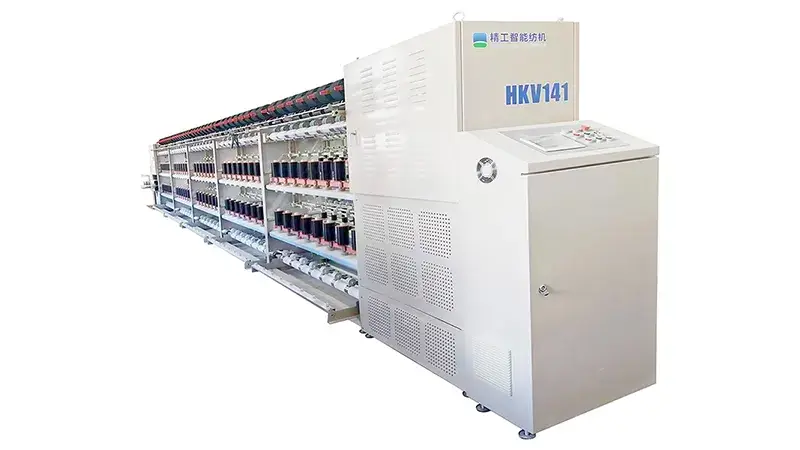

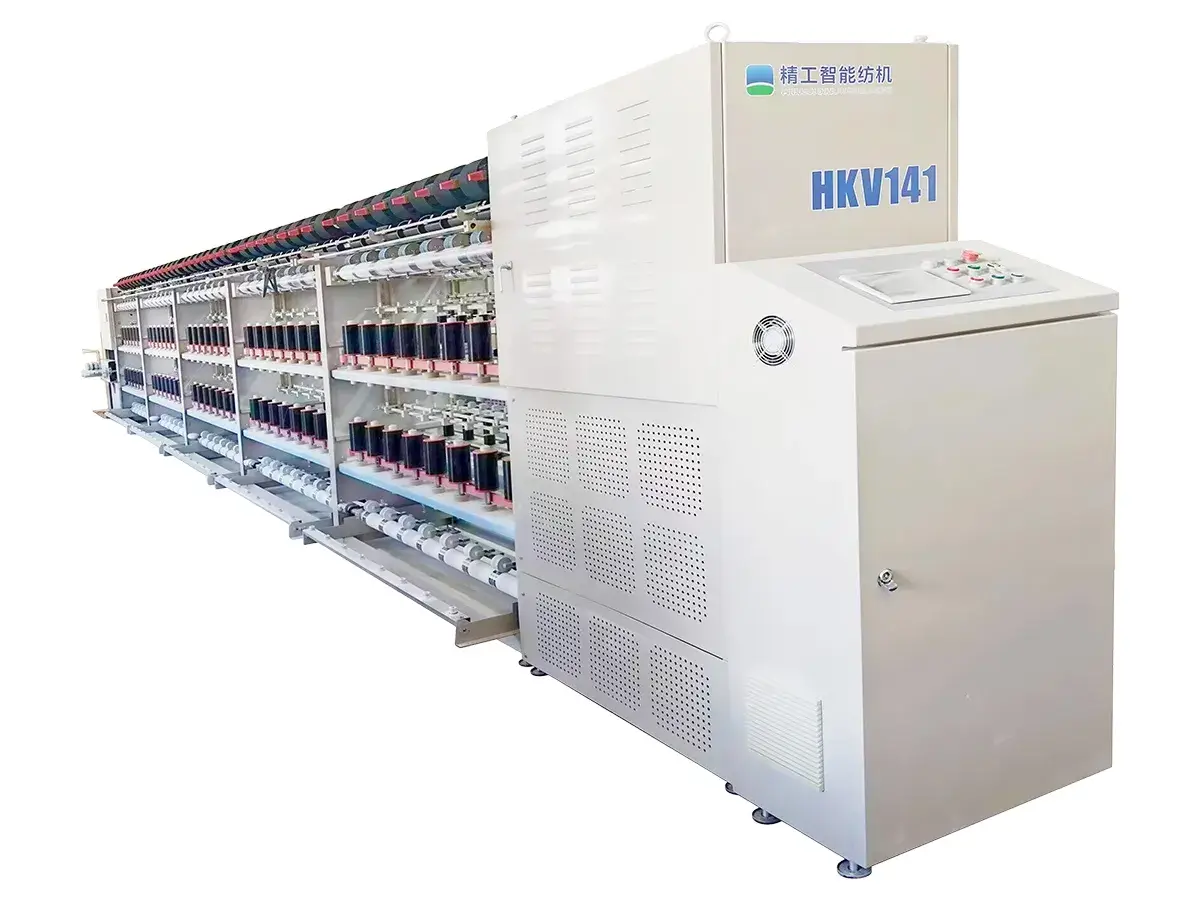

HKV141E Elastic Yarn Covering Machine Single/Double Covering with Elastic Yarn Separation
HKV141E is designed for producing covered yarn with latex (elastic rubber) or spandex as the core yarn. The elastic yarn covering machine supports single covering production, allowing filament yarns to wrap around the elastic core to form stable and flexible covered yarn.
It is equipped with a dedicated latex yarn separating device that helps guide and distribute the elastic yarn smoothly during processing. The covering machine uses a welded frame structure for stable operation. In the drafting section, a dual-roller design works together with a lateral micro-movement mechanism to keep the twist more even and extend the service life of the pressure rollers. A specialized elastic yarn feeding unit is also installed at the lower section to maintain smooth yarn feeding during production.

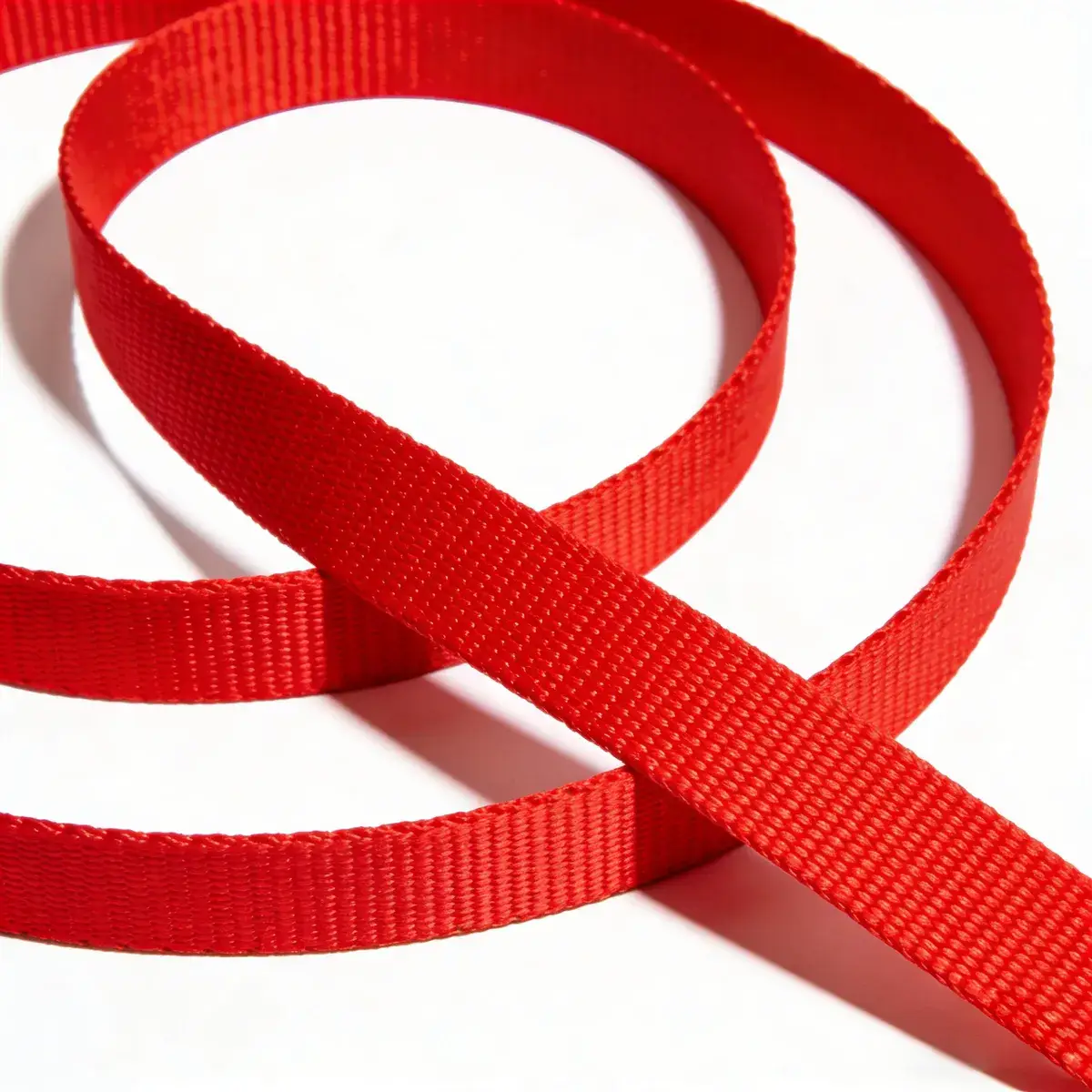

The elastic covered yarn is commonly used in textile products such as garments, woven tapes, sports socks, and elastic fabric materials.
HKV141E is designed for producing covered yarn with latex yarn (elastic rubber) or spandex as the core yarn. The yarn covering machine supports the production of elastic covered yarn used in garments, woven tapes, sports socks, and elastic textile fabrics.
| Number of Spindles | 160 (single covering), 80 (single covering) |
| Spindle Speed | 7000-14000r/min (Type I) 7000-17500r/min (Type Ⅱ) |
| Twist Range | 300-2200T/M |
| Twist Direction | S/Z |
| Draft Ratio | 3-5 |
| Power | 13kW |
| Dimensions | 11310×1500×2100mm |
| Applicable Material | Latex yarn 23-110# Spandex 70-420D (customizable for other raw materials) |
-

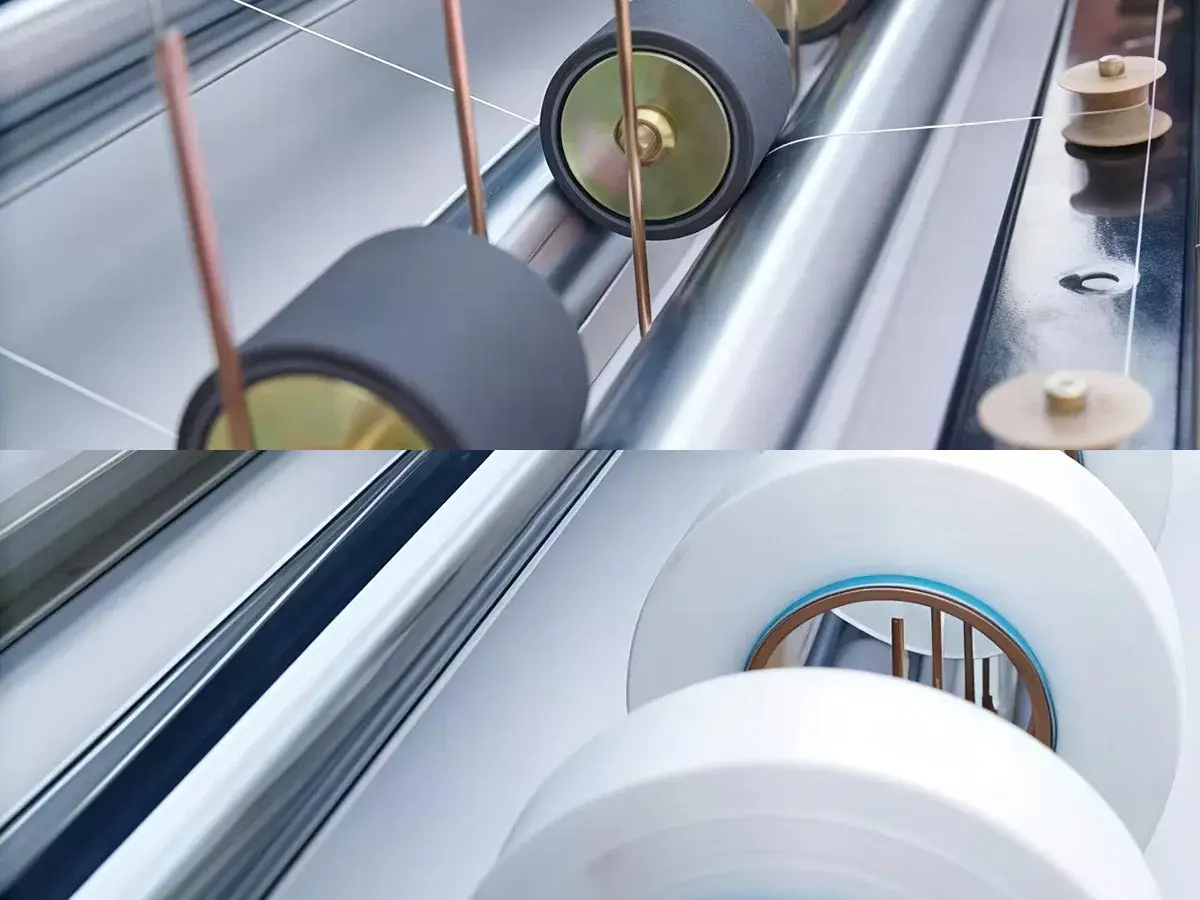

Elastic Yarn Separating DeviceEquipped with a dedicated elastic yarn separating device that keeps latex strands separated and running smoothly, it maintains consistent drafting ratios and uniform twist during production, ensuring stable rubber yarn quality. Two types of latex separating devices are available to suit different production requirements.
-
Multi-Function Feeding SectionThe lower feeding section can be adjusted to support different yarn feeding configurations. It can also be adapted to feed spandex for producing spandex covered yarn. An optional foot pedal can also be installed to lower the operating height and make operation more convenient for different raw material processing needs.
-

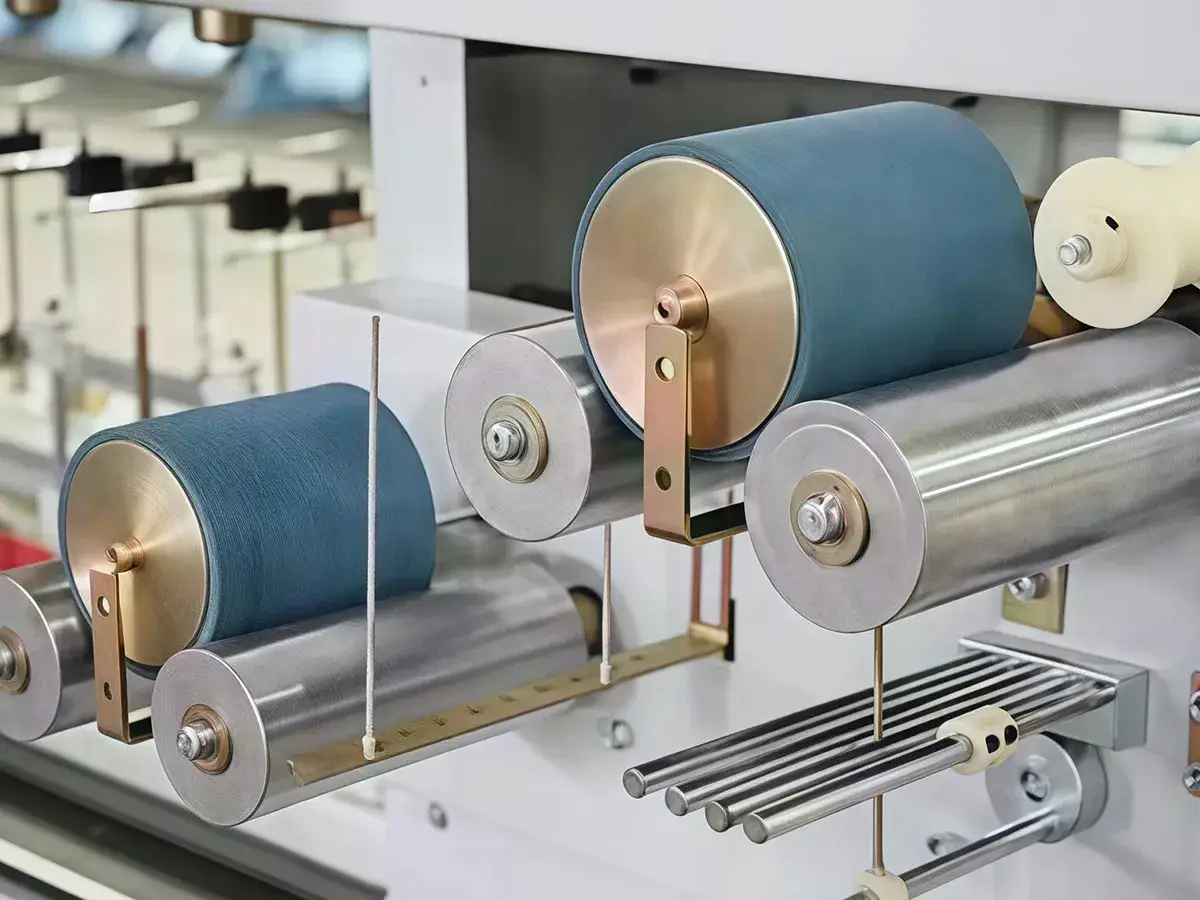

Dual Roller Drafting Structure
A dual-roller drafting structure is adopted to keep the twist of latex yarn stable and even. This design supports the processing of latex yarn in different specifications.
