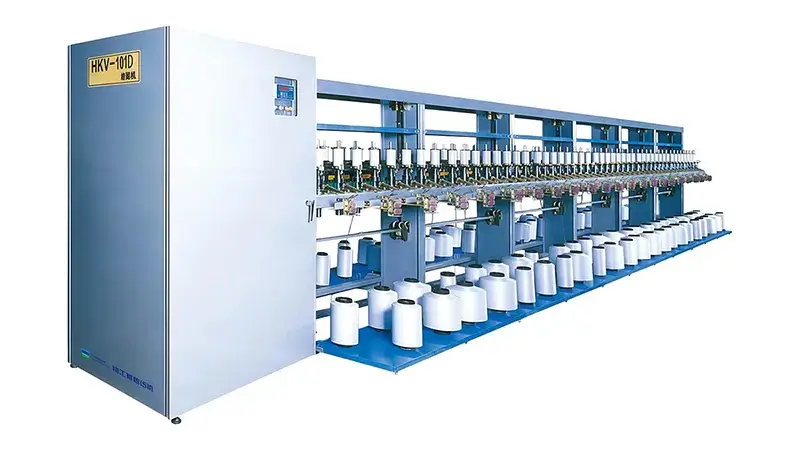

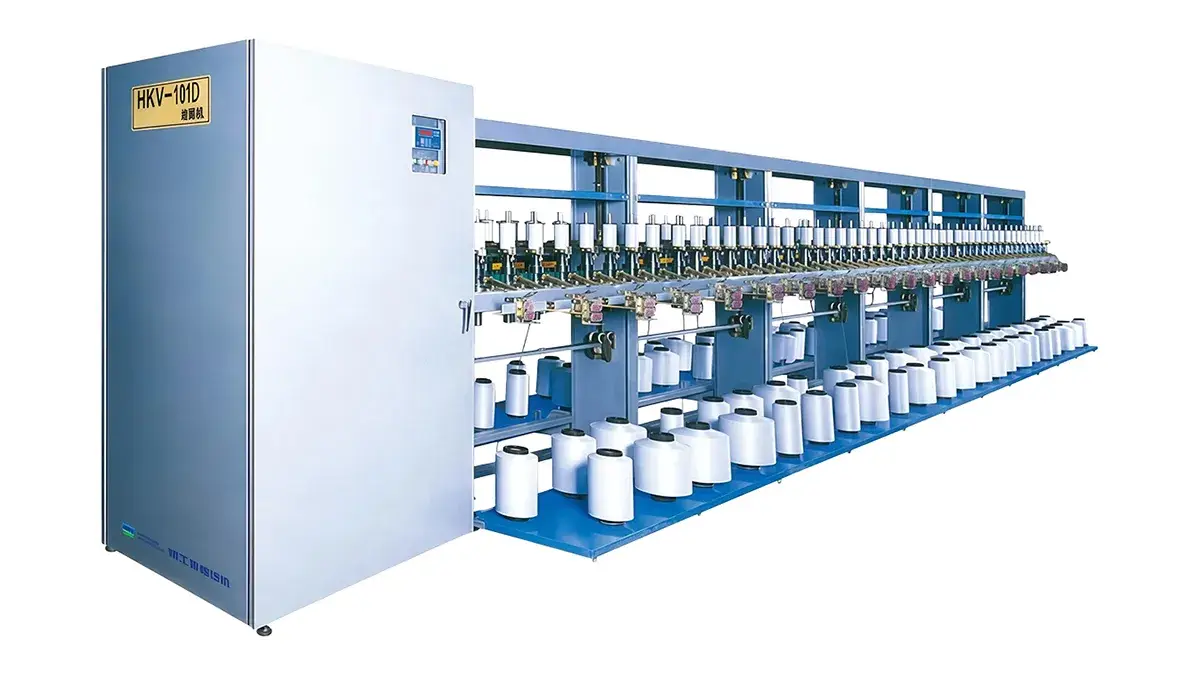

HKV101D Yarn Winding Machine
HKV101D is used as an upstream winding machine for yarn covering machines and fancy yarn twisting machines. It is suitable for winding yarn materials including chemical fibers and blended yarns into packages for subsequent processing. It uses a computerized control system, making operation straightforward while maintaining high winding efficiency and a compact machine footprint.
Specifications
| Machine Layout | Double-sided, single-layer | ||||
| Number of Spindles | 48 | 64 | 80 | 96 | 112 |
| Spindles per Section | 16 | 16 | 16 | 16 | 16 |
| Number of Sections | 3 | 4 | 5 | 6 | 7 |
| Spindle Pitch (mm) | 185 | ||||
| Winding Speed (m/min) | 300-500 | ||||
| Winding Diameter (mm) | Ø74-Ø105 | ||||
| Control System | Ball screw + inverter control | ||||
| Installed Power (kW) | 4.75 | 4.75 | 4.75 | 6.25 | 6.25 |
| Weight (kg) | 1500 | 1750 | 2000 | 2250 | 2500 |
| Dimensions (mm) | 5895×1420×1795 | 7435×1420×1795 | 8975×1420×1795 | 10515×1420×1795 | 12055×1420×1795 |
Features
- It uses a microcomputer-controlled ball screw system that supports multiple winding modes. This helps maintain accurate package formation and consistent winding quality.
- A fixed braking device is installed to provide quick response and simple operation, helping ensure safe machine control during operation.
- The transmission system adopts an upper and lower push-pull rod structure, allowing balanced power transfer with lower load and reduced mechanical wear.
- The overall design combines intelligent control with reliable mechanical construction, supporting precise and efficient yarn winding in textile production.
